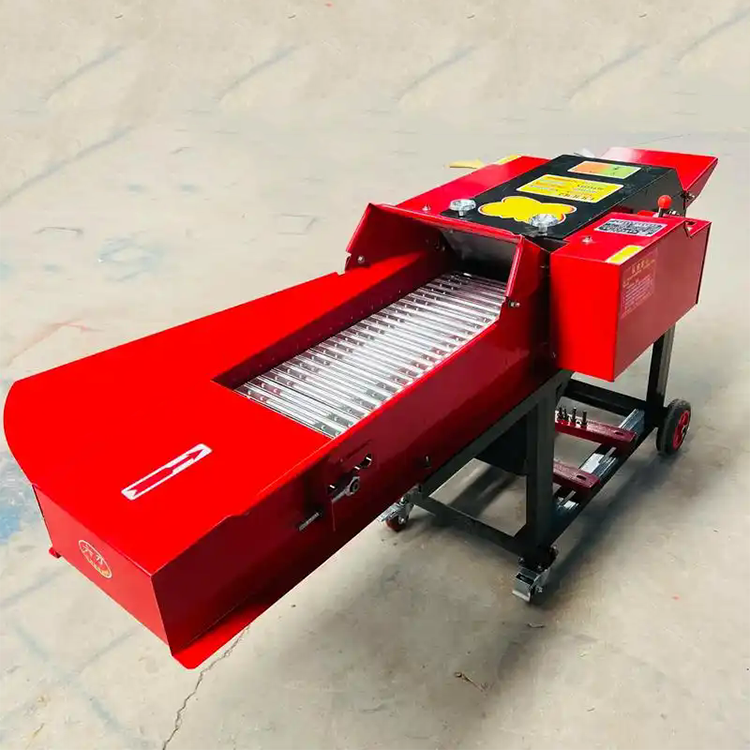

9RZ-5 type straw kneading machine | |
Product brand: Nuoxing Machinery | Supporting power: 7.5KW motor |
Motor speed: 2800 rpm | Structural quality: 230KG |
Overall dimensions: 2300*580*1080MM | Production efficiency: 5000KG/H |
Number of blades: 4 pieces | Feeding method: automatic feeding |
Triangular kneading knife: 30 pieces | Structural form: Cutting and rubbing type |
Discharge effect: 10-30MM soft silky |
(1) When the hay cutter is operating, the safety protection equipment must be complete.
(2) The operator should fully understand the performance of the machine, it is strictly prohibited to start the operation after drinking, illness or excessive fatigue, and people and things should not be close to the operating part during the work.
(3) Young people under the age of 16 and those who have not mastered the rules of using the machine are not allowed to work alone.
(4) The working area of the hay cutter should be spacious and equipped with fire protection equipment.
(5) When feeding grass, the operator should stand on the side of the feed hopper, and it is forbidden to reach into the cover of the feed hopper. At the same time, it is necessary to strictly prevent wood rods, metal objects, masonry, etc. from straying into the machine, so as not to damage the machine and injure people.
(6) It is strictly prohibited to turn the cutter head upside down.
(7) The hay cutter must work at the specified speed, and overspeed and overload operation are strictly prohibited.
(8) When replacing fasteners for moving and fixed blades, use class 8.8 bolts and class 8 nuts. Do not replace them with lower-grade bolts and nuts.
(9) If abnormal sound is found during work, stop the machine immediately for inspection. Power must be cut off before inspection, and troubleshooting is prohibited when the machine is running.
(10) Material feeding amount should be appropriate, too much easy to cause overload stop. Of course, it can not be too little, too little will affect the efficiency of guillotine cutting.
(11) Before stopping work, the displacement handle should be turned to 0, let the machine idling for about 2 minutes, and then stop after blowing the dust and weeds in the machine.
